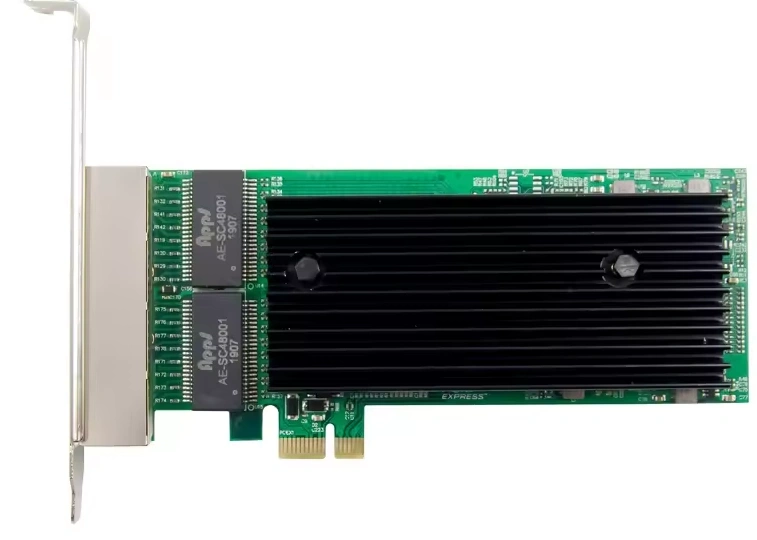

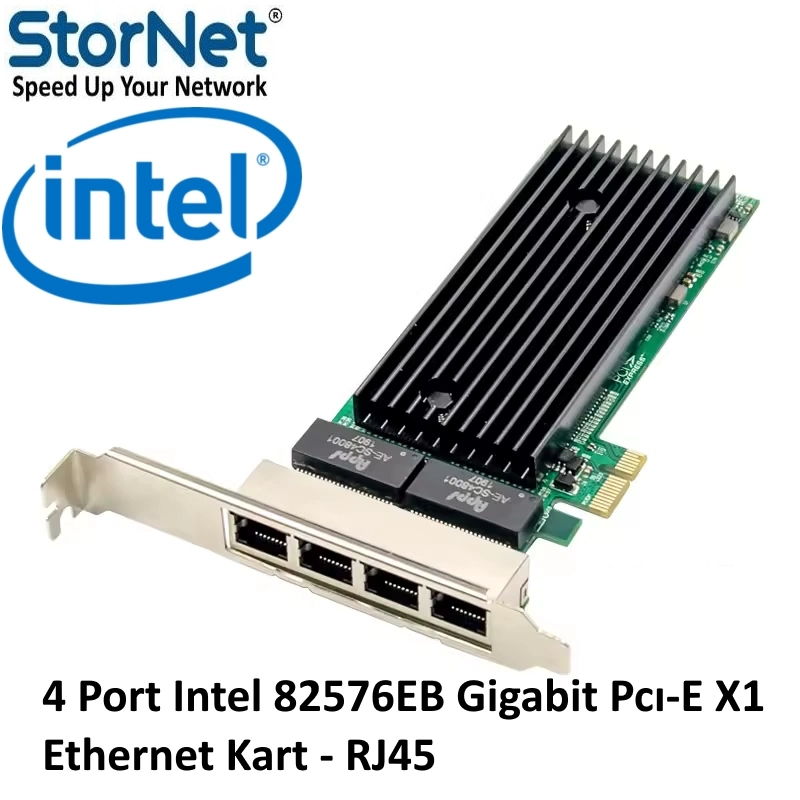

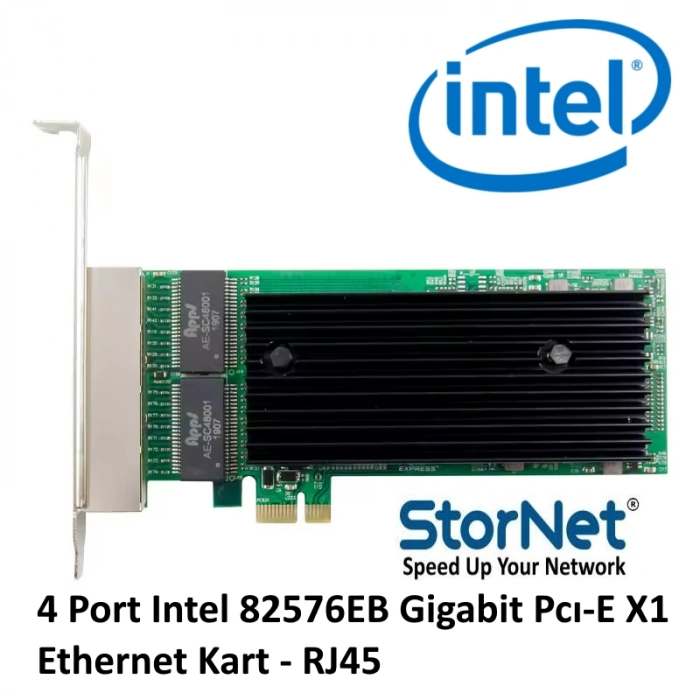

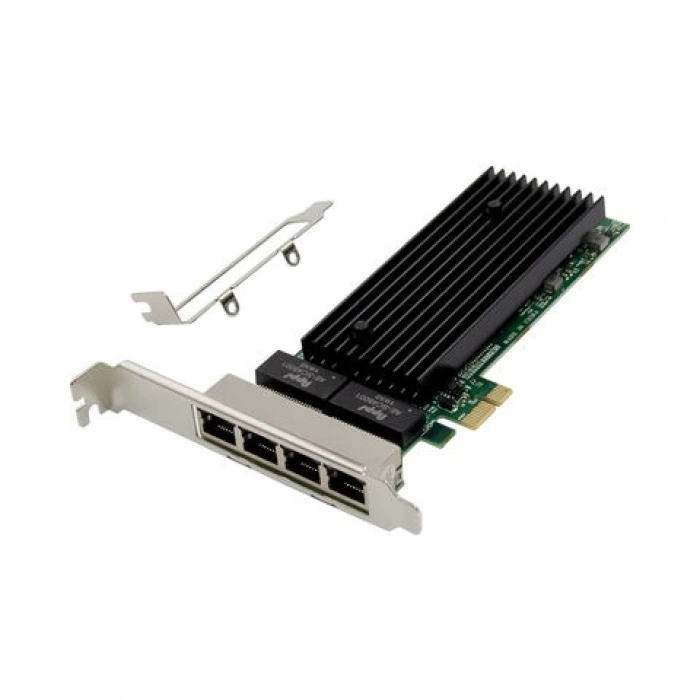

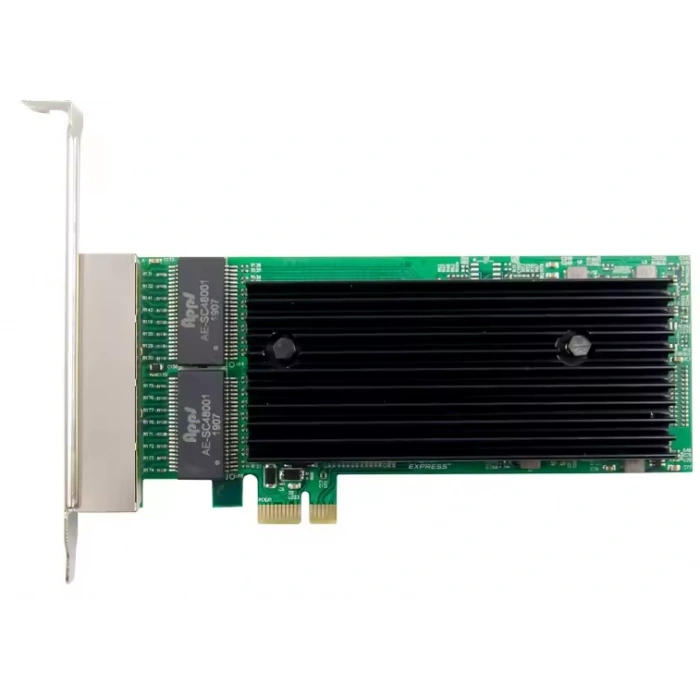

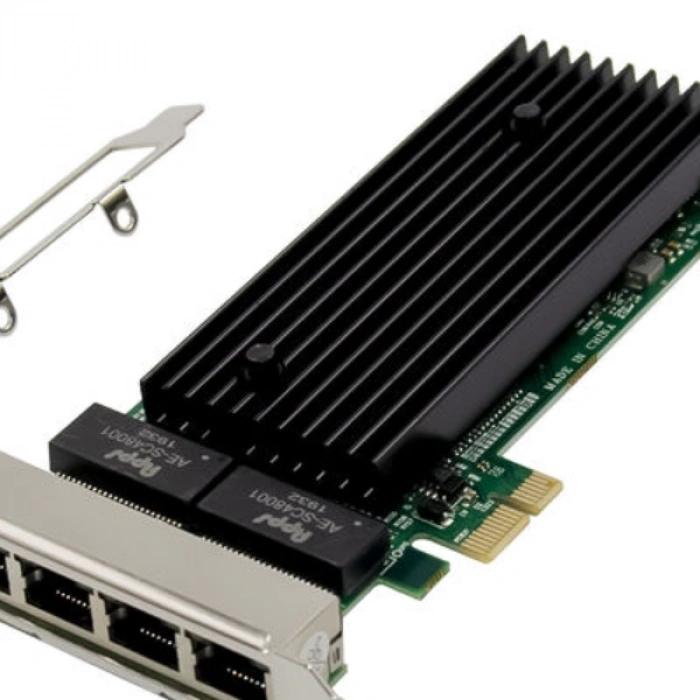

4 Port Intel 82576EB Gigabit Pcı-E X1 Ethernet Kart StorNET

4 Port Intel 82576eb Gigabit Pcı-e X1 Ethernet Kart Stornet

PCI-E X1/X4/X8/X16 Uyumlu (SOĞUTUCULU) Intel 82576EB Chipset Gigabit Ethernet Controller
Ürün Kodu: 82576EB-4P
Kategori: 1Gbase Ethernet Kartı
Kart | Bracket: Full Height Bracket , Low Profile Bracket
Kart | ChipSet: intel
Kart | Cyrpto: Cyrpto Disabled
Kart | Hız: 1GbE
Kart | Marka: StorNET Networks
Kart | PCI BUS: PCI Express 2.1
Kart | PCI Yuva: PCI Exp x1 Slot
Kart | Port Sayısı: 4-Port RJ45
Kart | Tipi: Ethernet Kartı

4 Port Intel 82576EB Gigabit Pcı-E X1 Ethernet Kart StorNET özellikleri

- Chipset: Intel JL82576EB
- PCI-Express host interface specification v2.0 with 2.5GT/s BUS width
- PCI-Express lanes: x1
- MDI (Copper) standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab)
- Serializer-Deserializer (SERDES) to support 1000Base-SX/X/LX (optical fiber) for Gigabit backplane applications.
- Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN
- Supports Receive-side scaling (RSS)
- Supports IPv 4, IPv 6 protocols
- Supports Jumbo Frames up to 9.5K
- Supports UDP.TCP and IP Checksum offloading
- Statistics for management and RMON
- Support for virtual machines device queues
- Queues per port: 16 TX queues and 16 RX queues Full-Spectrum Security
- Next Generation VMDq Support (8VMs)
- Interrupt throttling control to limit maximum interrupt rate and improve CPU usage

Essentials
Product Collection	Intel GbE Ethernet Server Adapter
Controller Processors	Intel JL82576EB
Bus Type/Bus Width	PCI Express* 2.0 (2.5 GT/s) x1-lane, operable in x4, x8 and x16 slot
Connections	4 x RJ45 Copper
Data Rate Supported	10/100/1000 Mbps (Copper),1000 Mbps (Fiber)
Cable Distances	Copper: up to 100 m
	Category-3 or higher for 10BASE-T operation Category-5 or higher for 100BASE-TX operation Category-5e or higher for 1000BASE-T operation



	Fiber: MMF 62.5/50 um
Bracket	Full-height bracket installed. Low-profile bracket included in package
Dimension	158 mm x 69 mm (PCIe Board)


Technical Specifications
IEEE standard/ Network topology	MDI (Copper) standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab)
	Serializer-Deserializer (SERDES) to support 1000Base-SX/X/LX (optical fiber) for Gigabit backplane applications.



Interrupt Levels	INTA, INTB, INTC, INTD, MSI, MSI-X











System Requirements
Windows Client	Windows 10/ 8.1/ 8/ 7
Windows Sever	2008 R2/ 2012/ 2012 R2/ 2016/ 2019
Linux	RHEL7.9/ 8.4/ 8.5, SLES12SP5, SLES15SP3, Ubuntu18.04LTS/ 20.04LTS, FreeBSD 12.2/ 13
Environment & Certification
Power consumption (typical)	Copper: 82576T2- W 82576T4- W

	Fiber: 82576F2- W 82576F1- W


Storage Humidity Maximum	90% non-condensing relative humidity at 35 °C
Storage Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
Operating Temperature	0 °C to 55 °C (32 °F to 131 °F)
Connect Speed LED Indicators	Not illuminated=10 Mb/s; green=100 Mb/s; amber=1 Gb/s (Copper)

	Green=1 Gb/s. Not illuminated=no link (Fiber)
Certifications	CE FCC RoHS

Kart \| Bracket	Full Height Bracket , Low Profile Bracket
Kart \| ChipSet	intel
Kart \| Cyrpto	Cyrpto Disabled
Kart \| Hız	1GbE
Kart \| Marka	StorNET Networks
Kart \| PCI BUS	PCI Express 2.1
Kart \| PCI Yuva	PCI Exp x1 Slot
Kart \| Port Sayısı	4-Port RJ45
Kart \| Tipi	Ethernet Kartı
