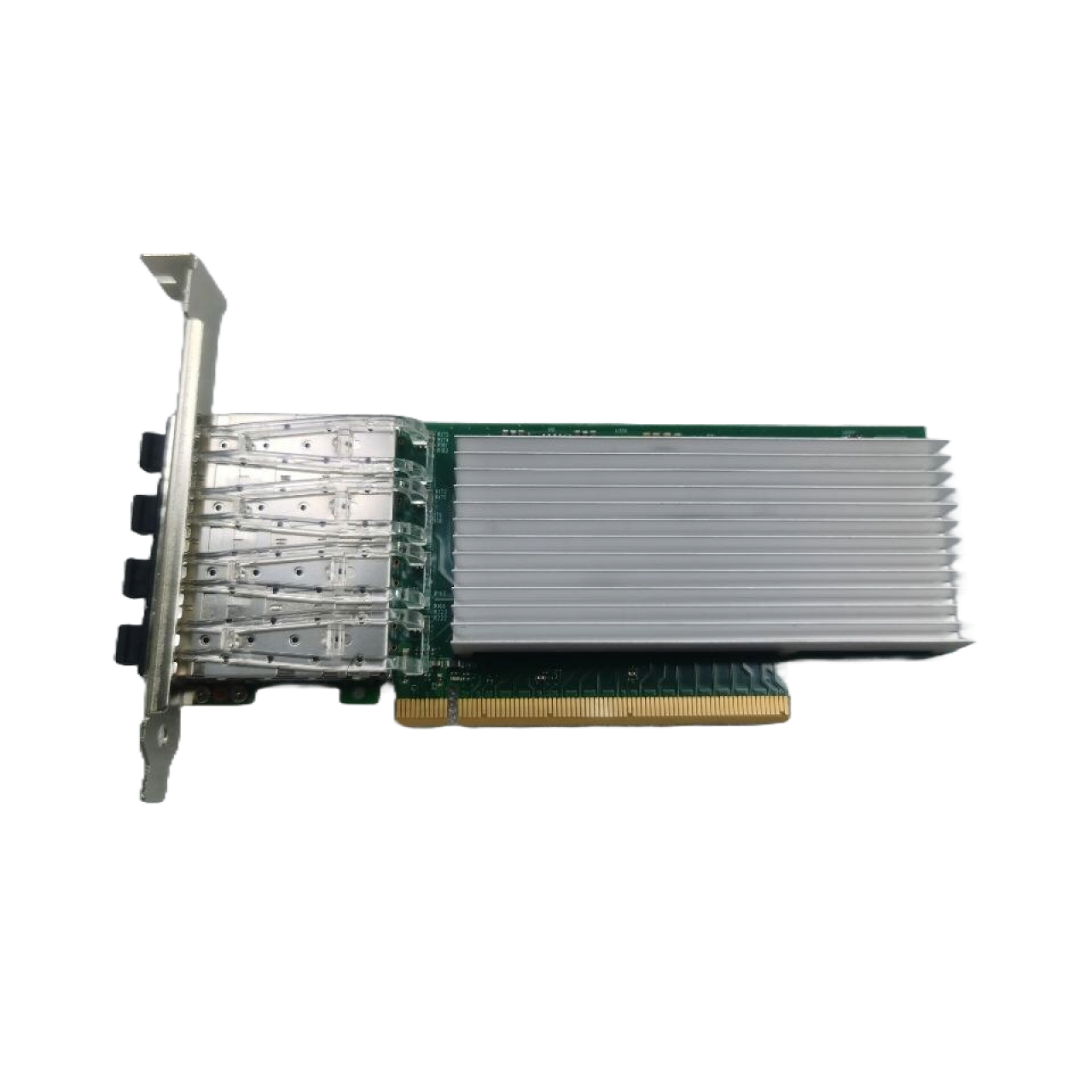

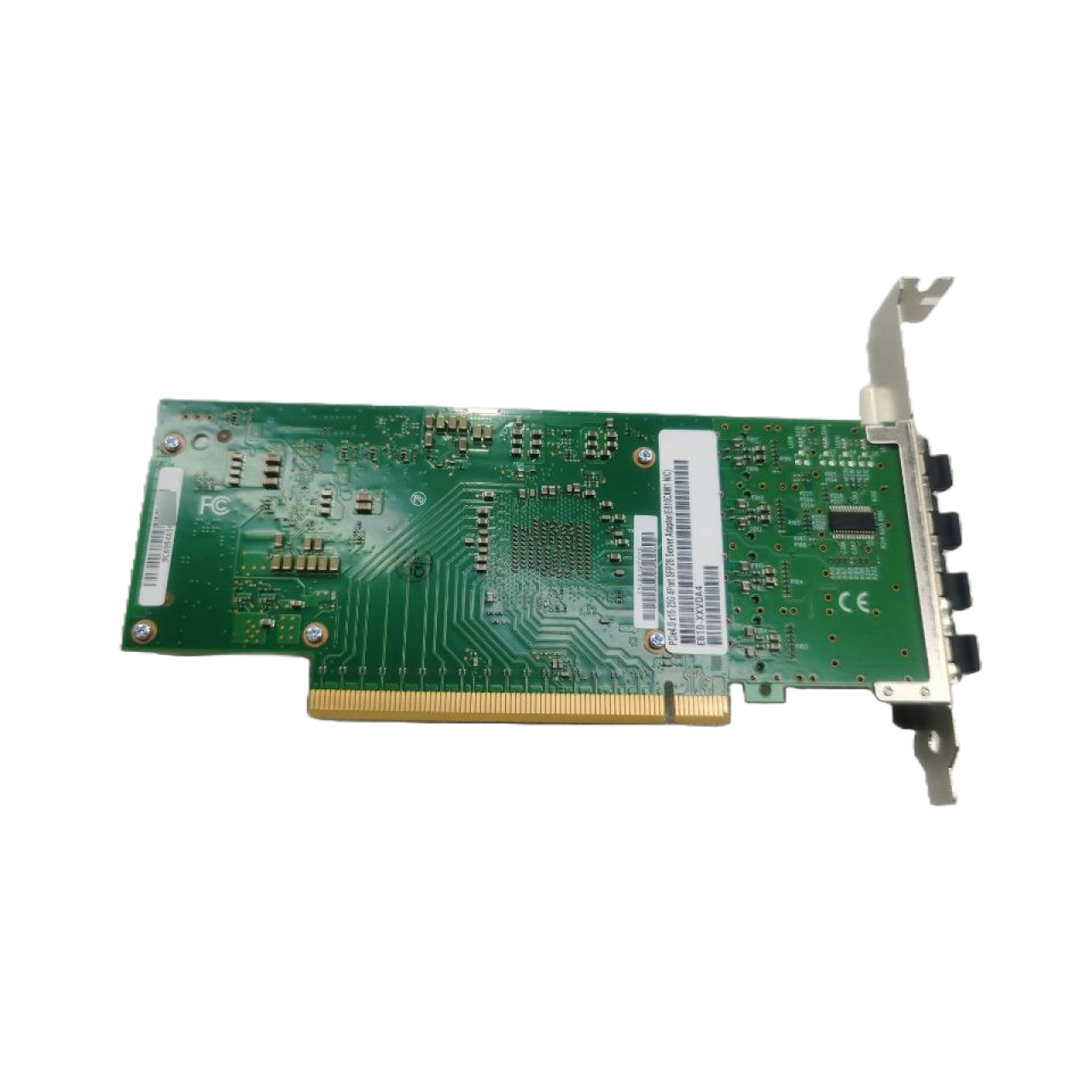

intel Ethernet Kartı 4-Port 25G E810-XXVDA4 PCIe Gen4x16 StorNET

4-Port her port SFP28 slota sahip Fiber Ethernet Kartı
25Gbase hızında intel(tm) E810-XXVDA4 ChipSet PCIe Gen4x16 yuva Ethernet Kartı.

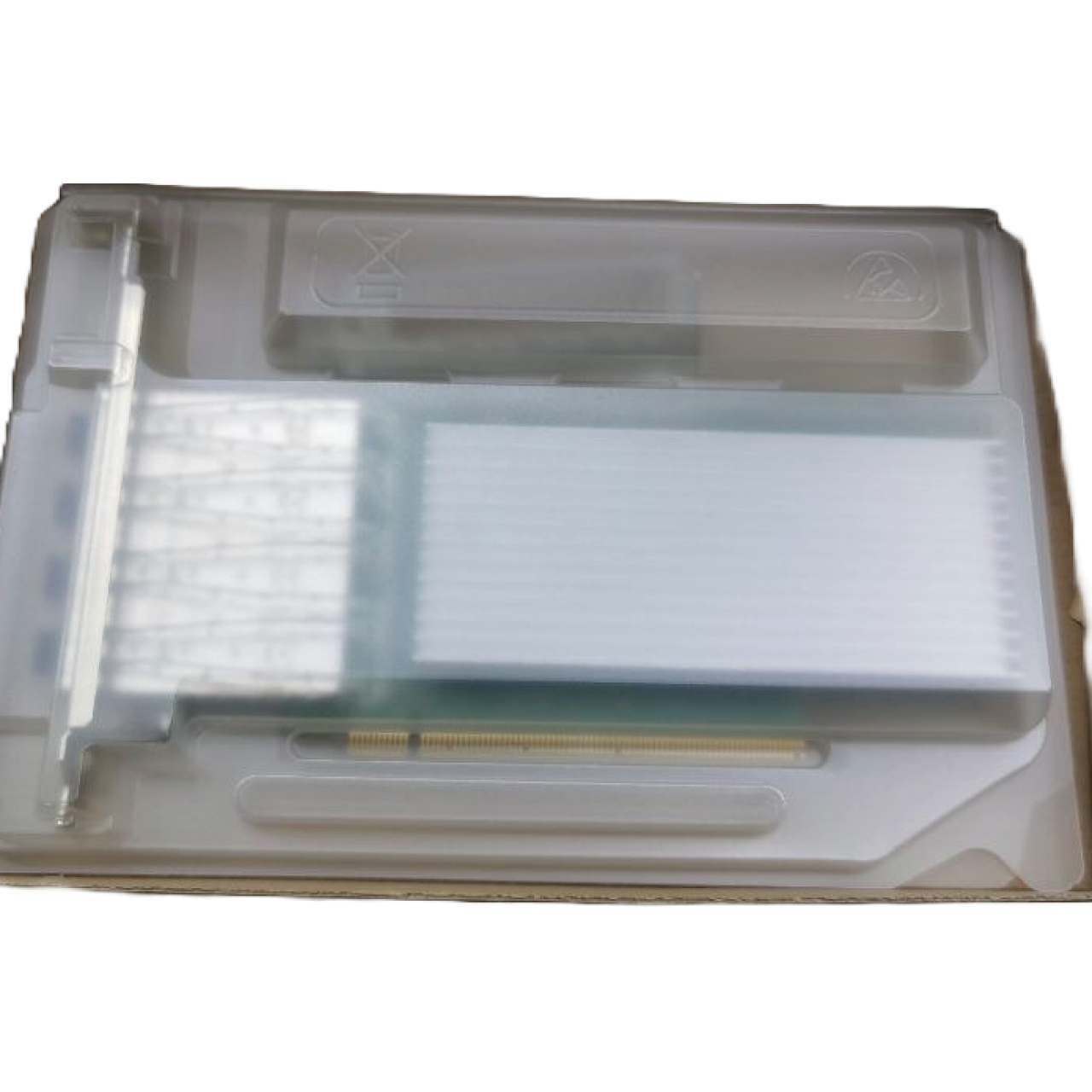

- Full Height ve Low Profile Bracket dahildir.
- Birlikte kullanabileceğiniz 25G SFP28 Transceiver yada DAC Kablo modelleri
- Ürün ChipSetine ait Teknik Dosya


intel Ethernet Kartı 4-Port 25G E810-XXVDA4 uyumlu StorNET Transceiver ve DAC Kablo Modelleri ile satın alabilirsiniz.

10/25GbE network adapter optimized to meet the performance needs for dynamic workloads





• Quad-Port SFP28	• Dynamic Device Personalization (DDP)
• PCI Express (PCIe) 4.0 x8	• Supports both RDMA iWARP and RoCEv2
• Application Device Queues (ADQ)	• IEEE 1588 Precision Time Protocol (PTP)

Intel Ethernet 800 Series network adapters with four 25GbE SFP28 ports and key performance optimizations,

The E810-XXVDA4 supports solutions across Cloud, Enterprise, and Communications. improve application efficiency and network performance with innovative and versatile capabilities.



Sepcification

▪ Compliance with PCI Express 4.0 specification and backward with PCI Express3.0

▪ Concurrency for 256 non-posted requests.

▪ Supports multiple port speeds with a single architechture: 25/10/1GbE

▪ 100Gb/s throughput for each TX and RX, up to 80Mpps for TX and 90Mpps for RX



• Network interface	25Gb: 25GBASE-CR/KR, 25G-AUI C2C/C2M, 25GBASE-CR1/KR1
		10Gb: 10Gb/10GABSE-KR, 10GSFI/SFP+
		• Support Virtualization features	8 Physical functions (PF)
	SR-IOV with up to 256 Virtual Functions (VF)
768 Virtual Station interfaces (VSI)
Microsoft VM Queue(VMQ)
VMware NetQueue



▪ Flexible Ethernet Port Configuration with Ethernet Port Configuration tool(EPCT)

▪ Stateless offloads: TCP/UDP segment offload, large segment offload, checksum offload

▪ IEEE1588 Precision Time Protocol Support

▪ RDMA support both iWARP and RoCE v2

▪ Enhanced DPDK for Network Functions Virtualization acceleration, advanced packet forwarding, and highly effective packet processing

▪ Deliver consistent application performance with Application Device Queues

▪ Improve packet processing efficiency with enhanced Dynamic Device Personalization (DDP)

▪ Intel® Ethernet Adaptive Virtual Function (Intel® Ethernet AVF)

▪ Jumbo frame of up to 9728 bytes
