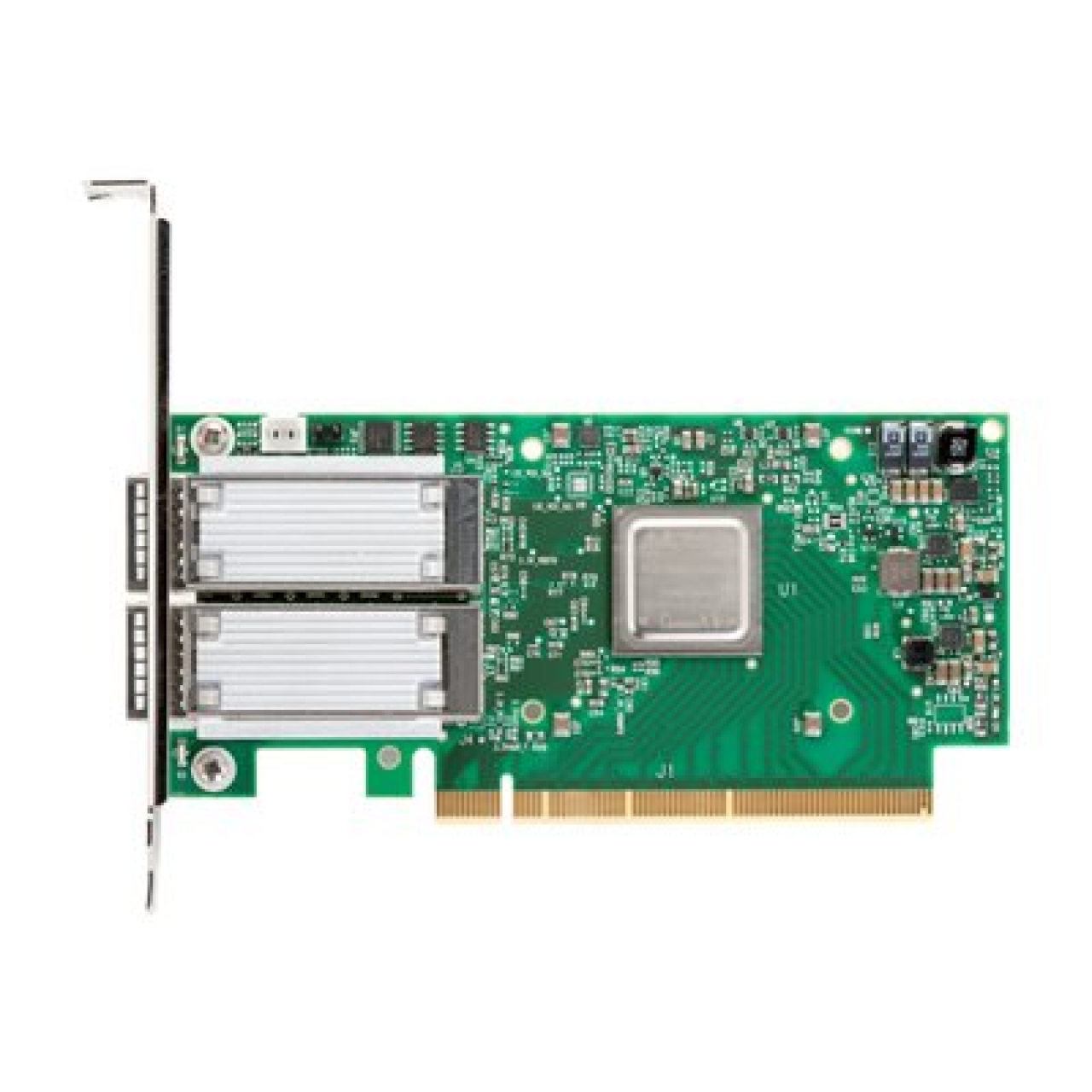

Ethernet Kartı Mellanox MCX556A-EDAT ConnectX-5 Ex VPI 2P QSFP28 PCIe4.0

Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile

Connector: Dual QSFP28 InfiniBand and Ethernet (copper and optical)

InfiniBand: IBTA v1.3 ^a

Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port

Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4,10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR

Data Rate

InfiniBand

SDR/DDR/QDR/FDR/EDR

Ethernet

1/10/25/40/50/100 Gb/s

PCI Express Gen4: SERDES @ 16.0GT/s, 16 lanes (2.0 and 1.1 compatible)

Voltage: 12V

Typical Power ^b

Passive Cables

19.3W

Maximum Power

Passive Cables

23.4W

1.5W Active Cables

26.8W

2.5W Active Cables

29.0W

Maximum power available through QSFP28 port: 5W

10% to 85% relative humidity

Airflow Specifications

Safety: CB / cTUVus / CE

EMC: CE / FCC / VCCI / ICES / RCM

RoHS: RoHS-R6
