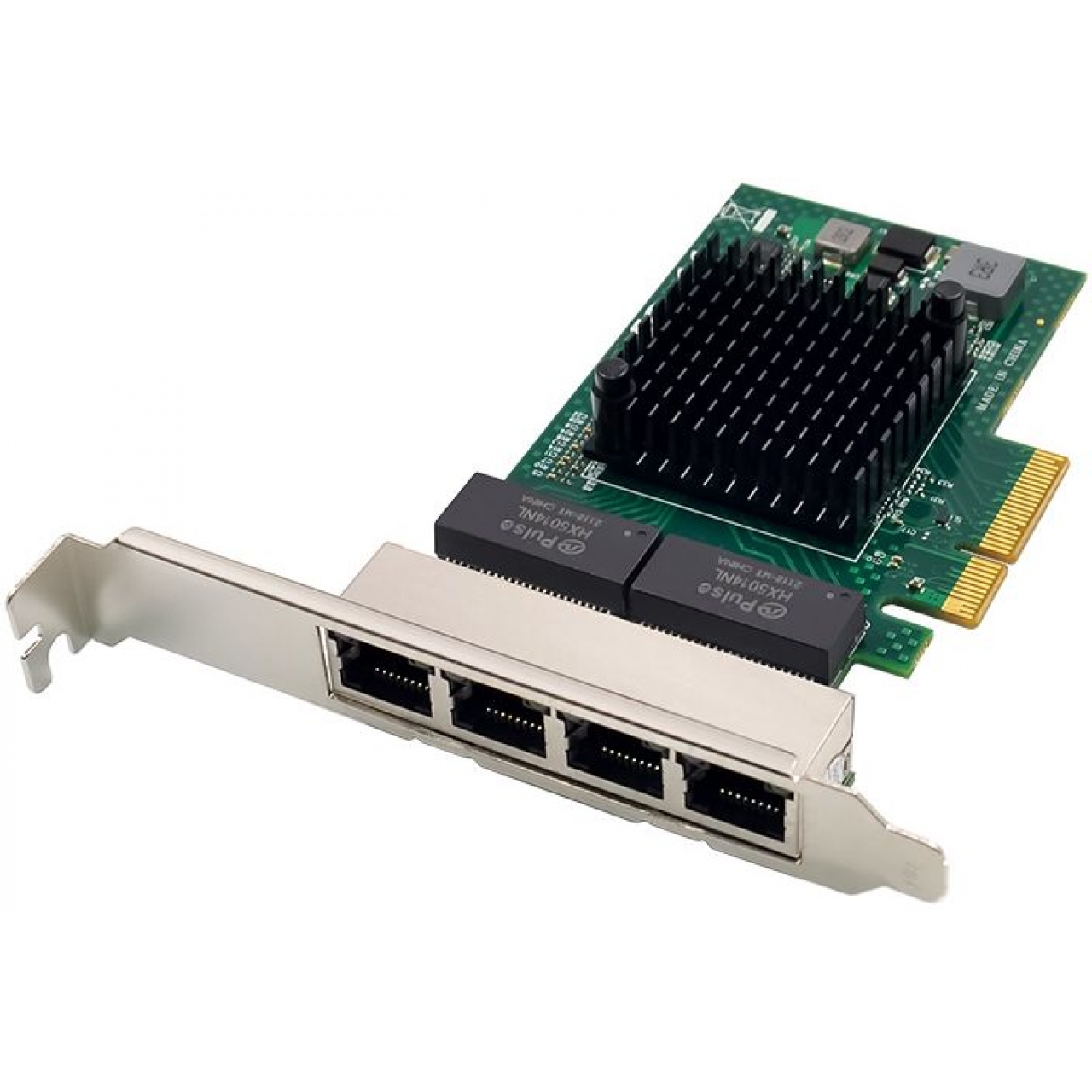

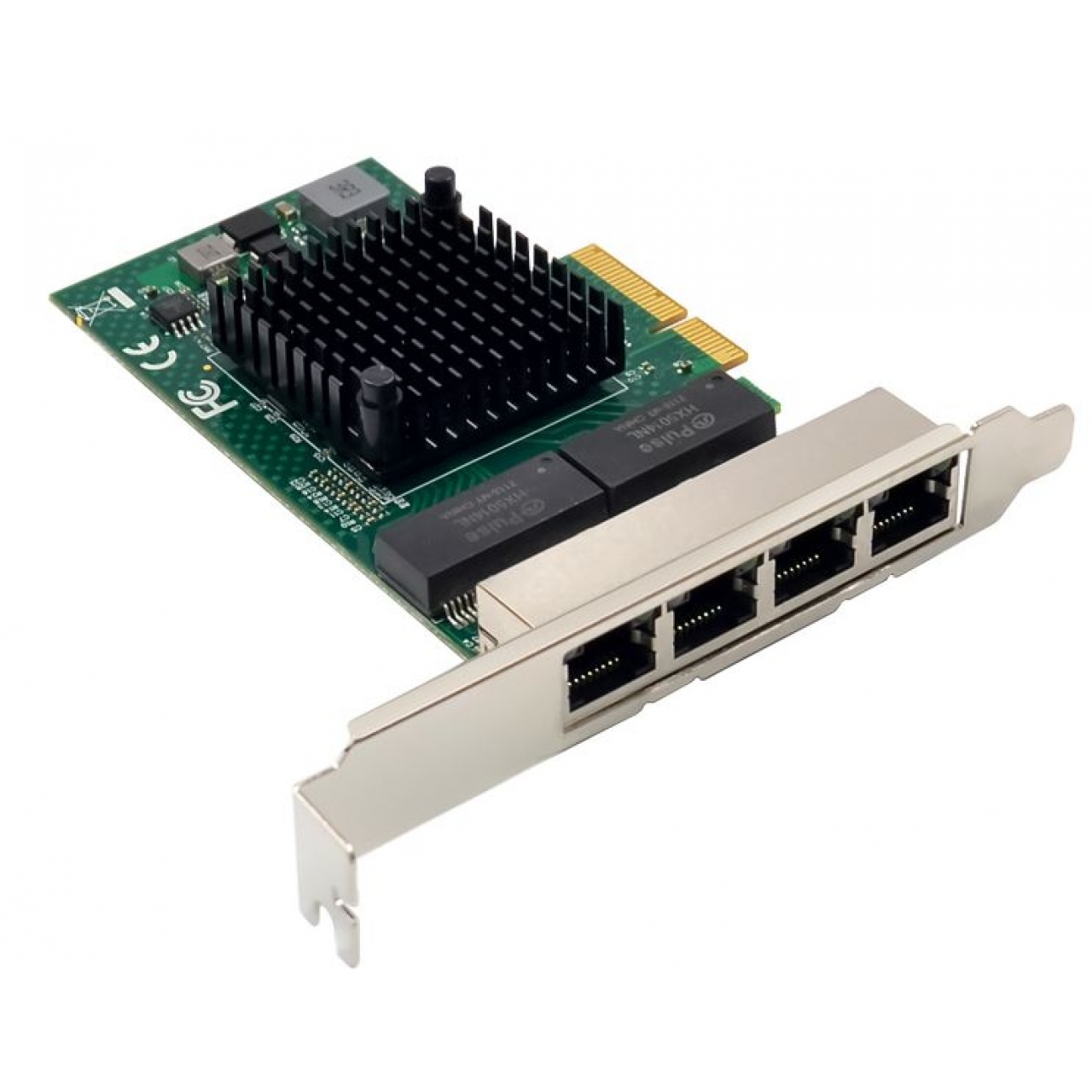

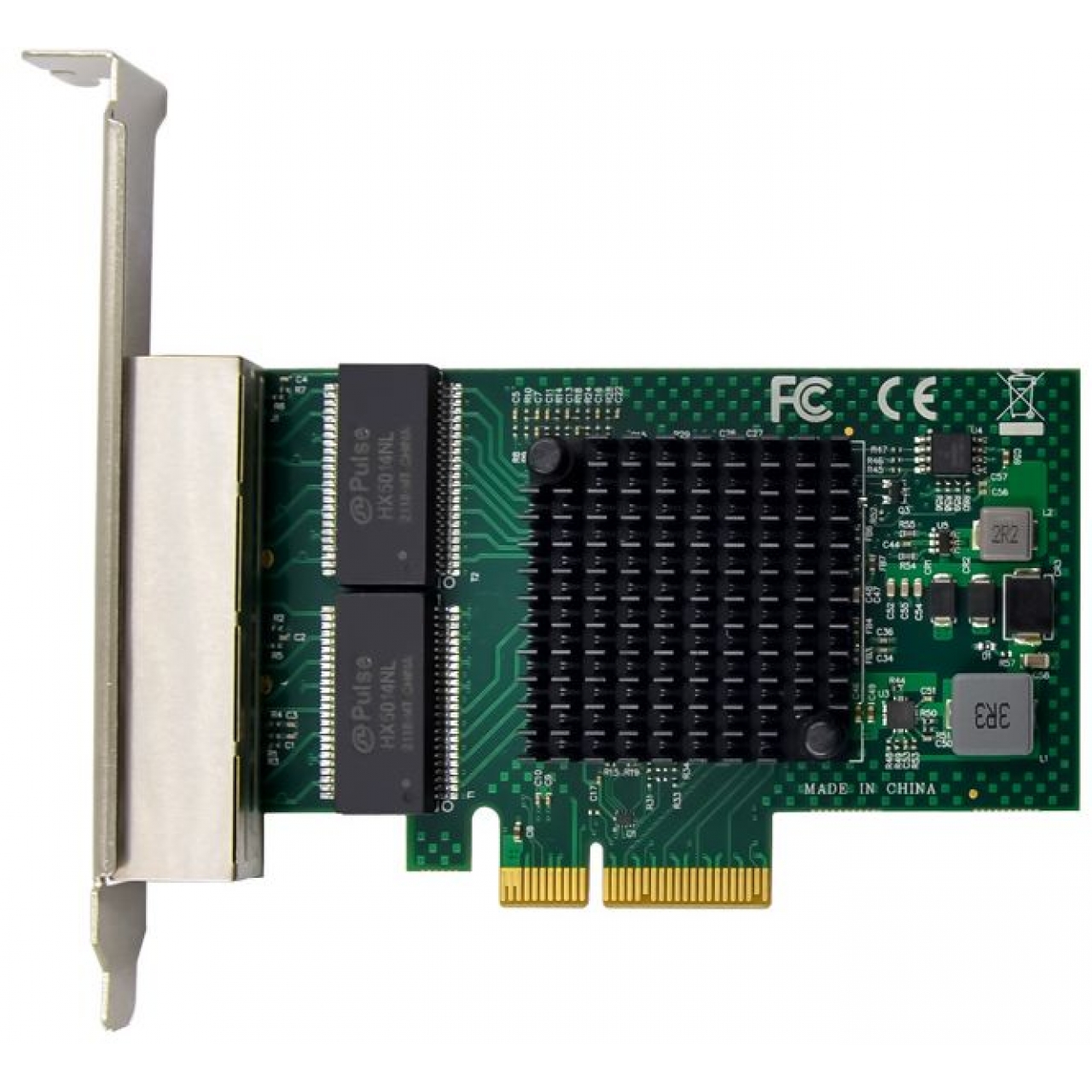

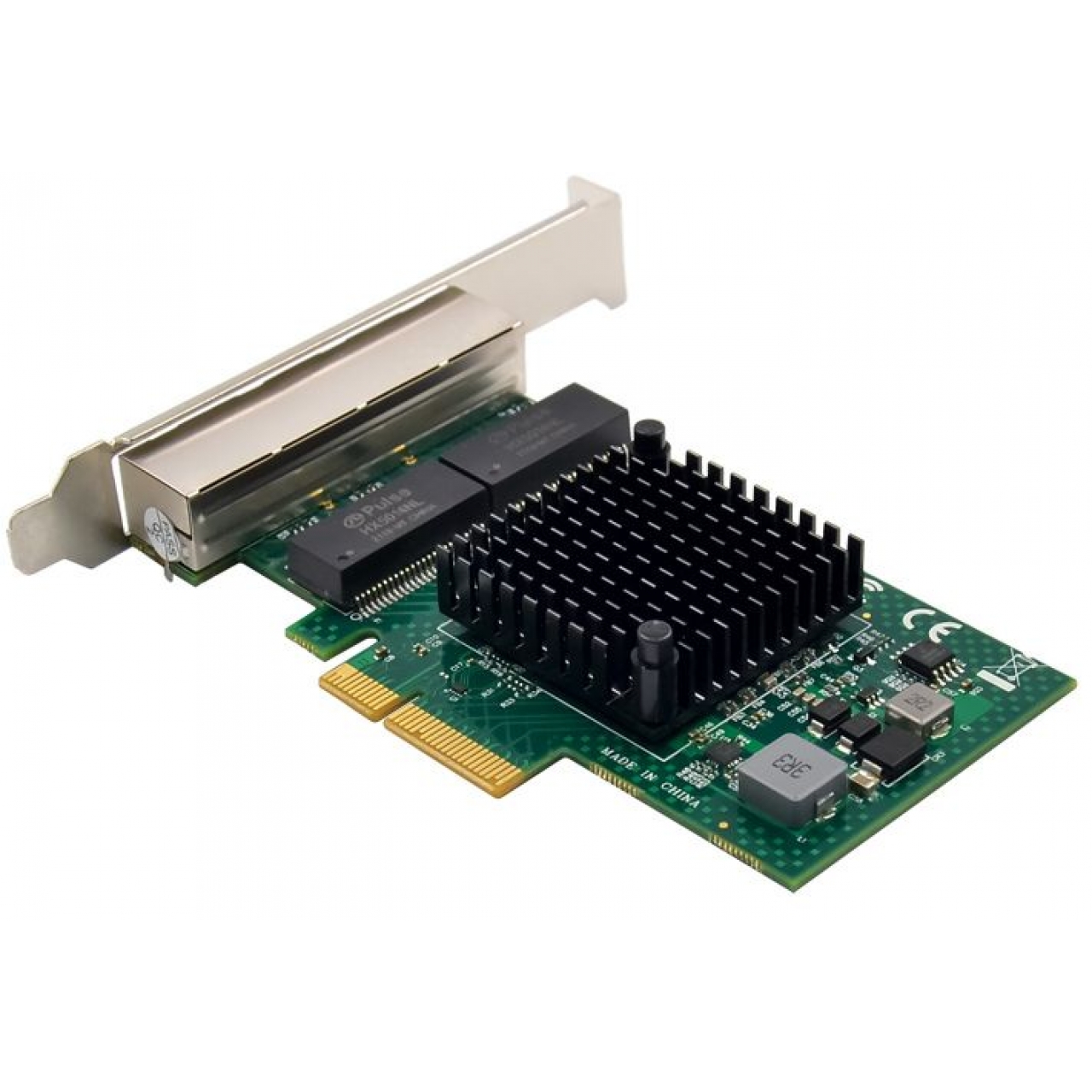

Broadcom BCM5719 PCIe x4 Quad-port 1GBASE-T Ethernet Kartı |
DELL ~ HPE uyumlu
PCI Express (PCIe) x4 NetXtreme BCM5719-4P, IEEE 802.3ab standart Category-5 Kablo uyumlu
Dört portlu 10/100/1000 Mb/s Ethernet Kartı.
BCM5719-4P Ethernet adaptörü, büyük gönderim (Large Send), TCP segmentasyonu, TCP/UDP/IP kontrol toplamı ve Alıcı Tarafı Ölçekleme (RSS) gibi yük denetimi teknolojilerini destekler.
▪ Quad-port Gigabit Ethernet adapter
▪ IEEE802.3ab 10/100/1000Mb/s Gigabit Ethernet compliant
▪ Virtual LANs (VLANs) : IEEE802.1q VLAN tagging
▪ PCI Express v2.1 x4 at 5GT/s or 2.5GT/s
▪ Energy Efficient Ethernet-compliant with IEEE Standard Std 802.3az - 2010
▪ MSI-MSI-X capabilities-up to 17 MSI-X vectors
▪ I/O virtualization support for VMWare, NetQueue, and Microsoft VMQ
▪ 17 receive queues and 16 transmit queues per port
▪ 17 MSI-X vectors supporting per queue interrupt to host
▪ Function Level reset
▪ ECC error detection and correction on internal SRAM
▪ TCP, IP, and UDP checksum offload
▪ Large Send offload, TCP segmentation offload
▪ Receive-side scaling
▪ Jumbo frames 9.6KB
▪ IEEE802.3x flow control
▪ Statistics for SNMP MIB II and Ethernet -like MIB
▪ Comprehensive diagnostic and configuration software suite
▪ ACPI 1.1a-compliant multiple power modes
▪ Wake-on-LAN support
▪ Quad RJ45 with integrated link and activity LEDs
