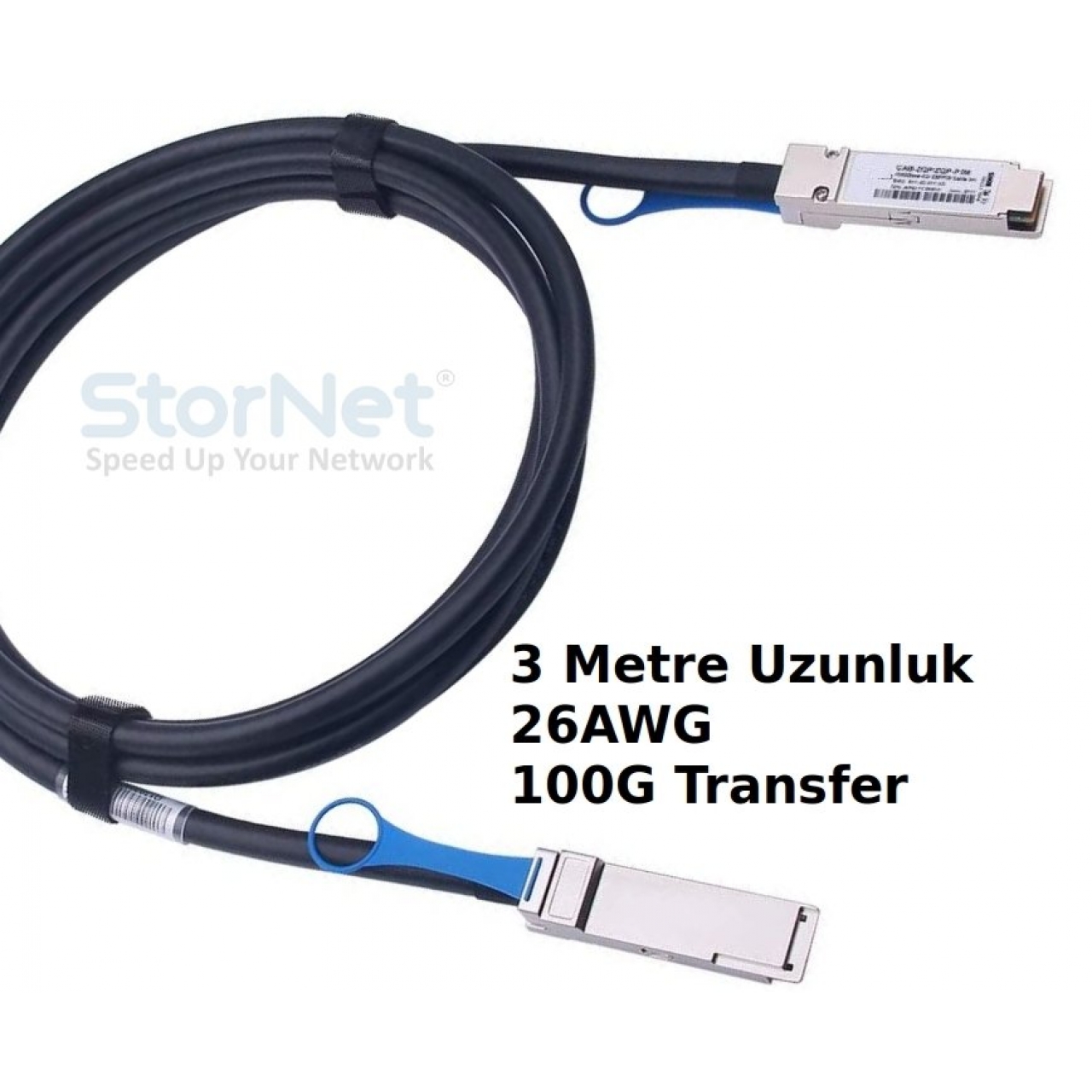

DAC Kablo HPE Aruba JL272A X240 uyumu 100G QSFP28 3 Metre

StorNET markalı SN-JL272A DAC Kablo "HPE X240 100 G QSFP28 - QSFP28 3 m Doğrudan Takılan Bakır Kablo" ile uyumludur.

StorNET Networks 3m(10ft) 100G QSFP28 to QSFP28 Passive DAC(Direct Attach Copper) twinax cables assembly features eight differential copper pairs, providing four data transmission channels at speeds up to 28Gbps per channel, and meets 100G Ethernet (4x25Gbps) and InfiniBand EDR (Enhanced Data Rate) requirements. These 100G copper cable assembly features a unique construction with individually wrapped twinax pairs, resulting in low insertion loss and low cross talk.

Features
- Supports aggregate data rates of 100Gbps
- Low insertion loss and low cross talk
- Wide operating temperature range: Standard: 0°C to +70°C  Industrial: -20°C to +80°C

Applications
- Low EMI radiation Switches, servers and routers
- Data Center networks
- Storage area networks
- High performance computing
- Telecommunication and wireless infrastructure
- Medical diagnostics and networking
- Test and measurement equipment


Compliant
- 100G Ethernet (IEEE 802.3bj)
- InfiniBand EDR
- SFF-8665
- RoHS compliant
