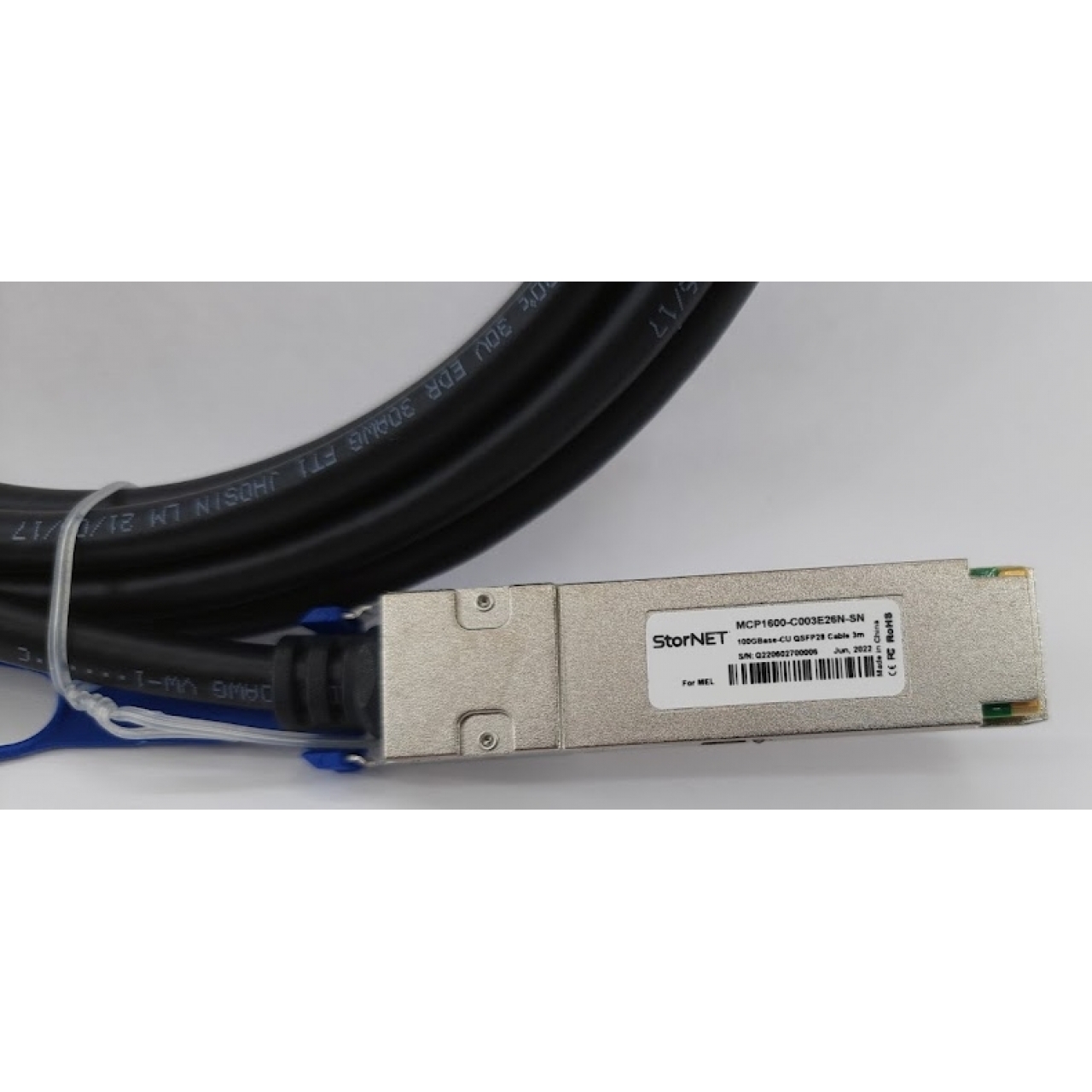

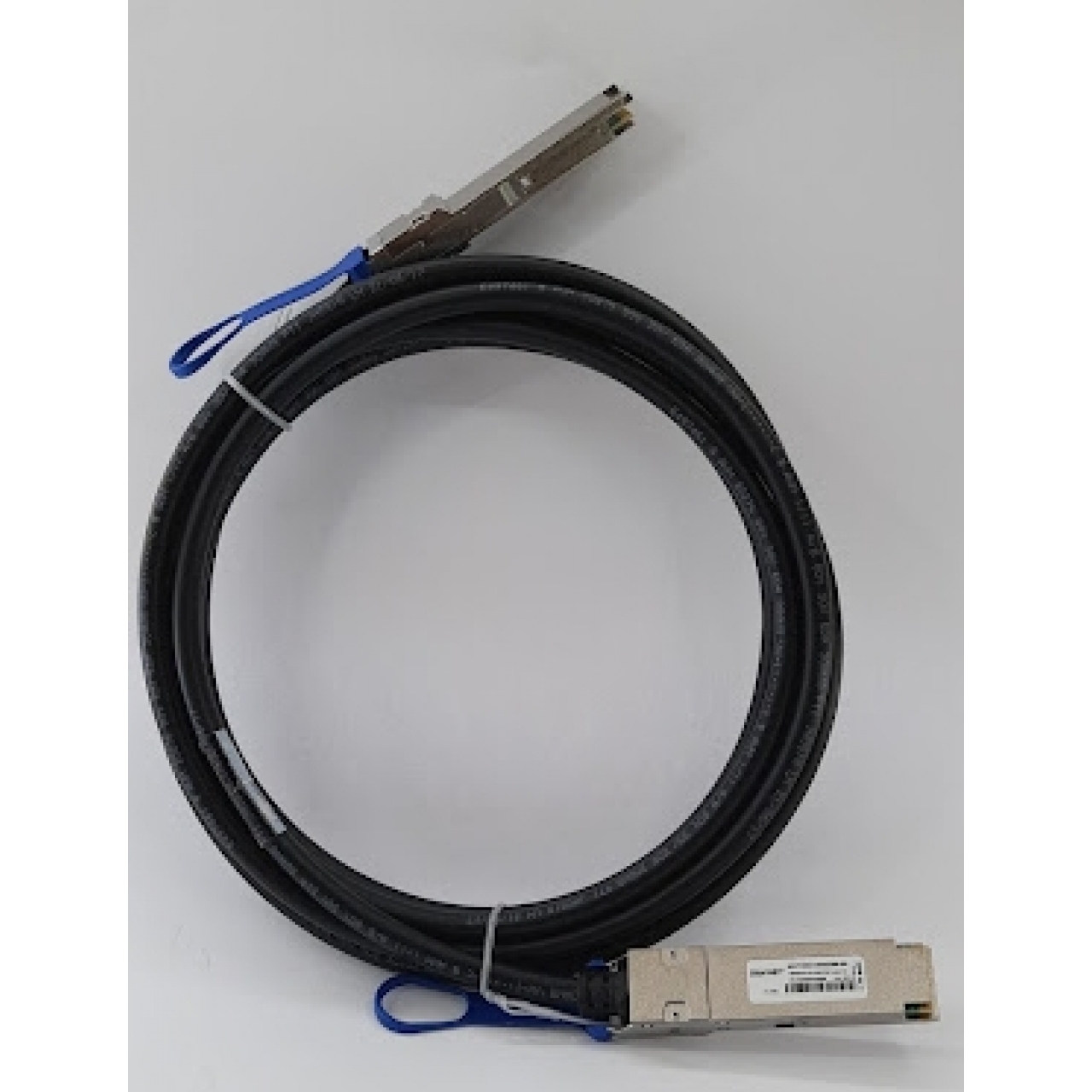

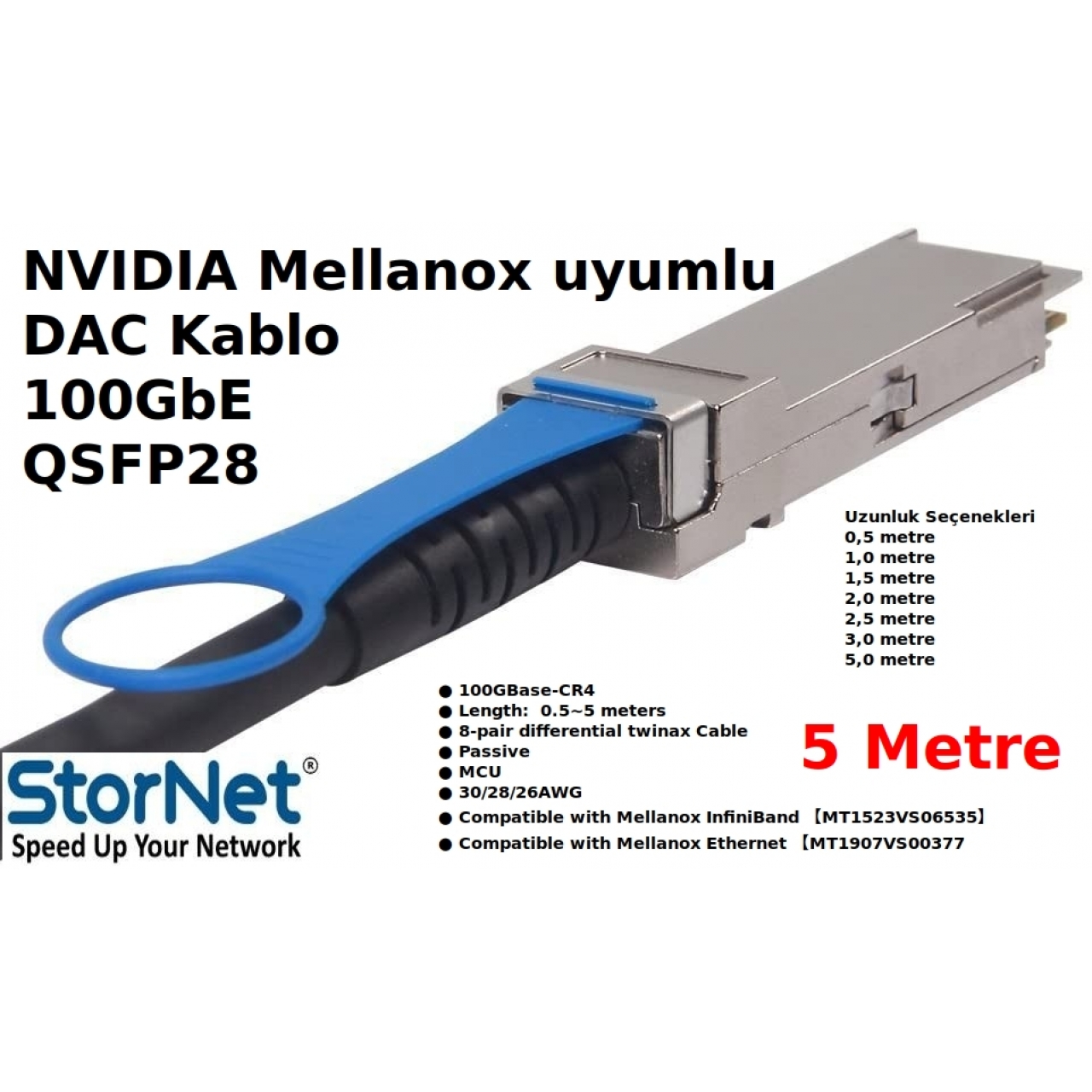

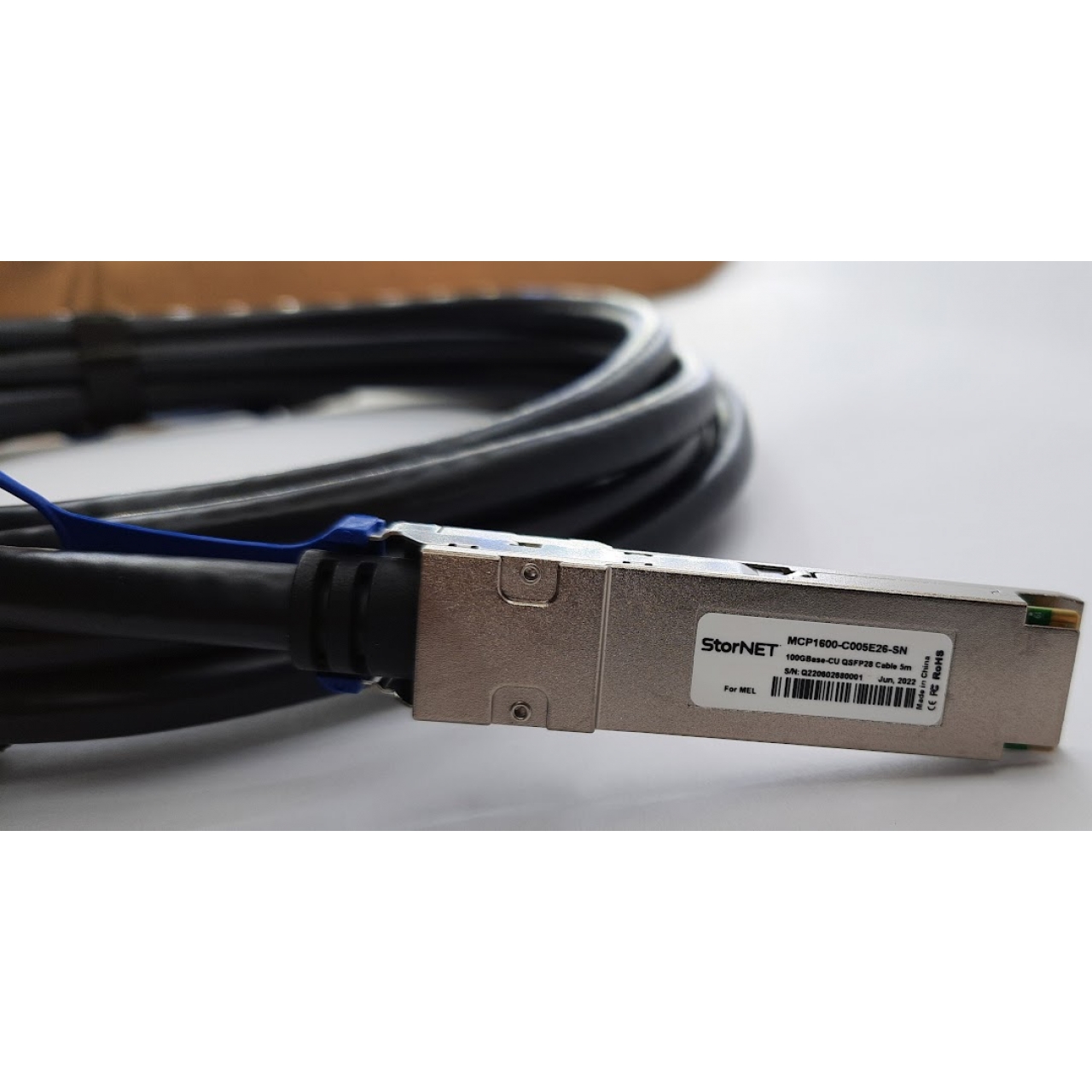

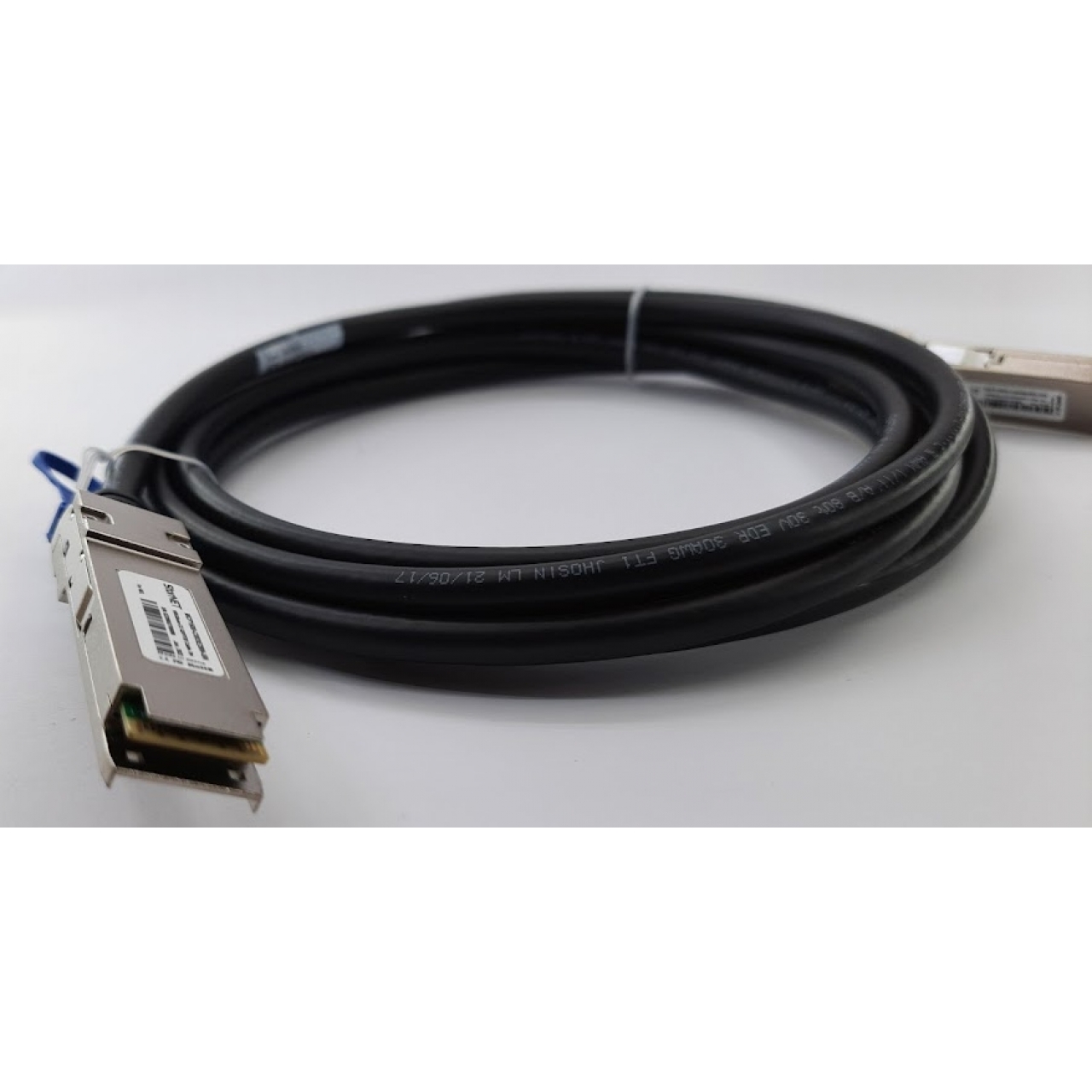

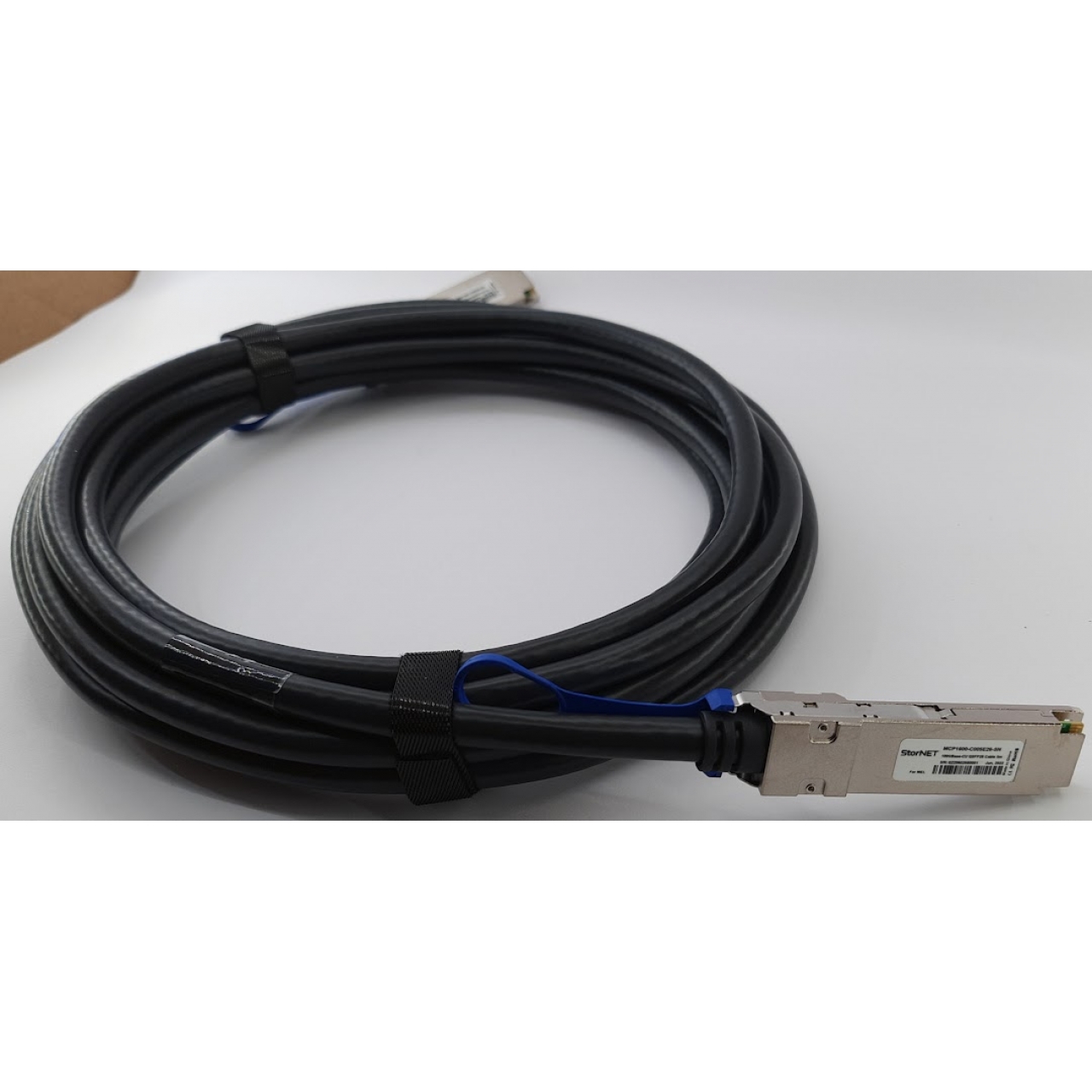

NVIDIA Mellanox MCP1600-C005E26L-SN DAC Kablo 100GbE QSFP28 5 metre uyumlu StorNET

MCP1600-C005E26-SN NVIDIA Mellanox uyumlu DAC Kablo 100GbE QSFP28 , 5 metre uzunluk , StorNET marka

● 100GBase-CR4
● Length:  0.5~5 meters
● 8-pair differential twinax Cable
● Passive
● MCU
● 30/28/26AWG

● Compatible with Mellanox InfiniBand 【MT1523VS06535】
● Compatible with Mellanox Ethernet 【MT1907VS00377

Bu ürün NVIDIA Mellanox uyumludur.

100Gb/s QSFP28 DAC, 8 pair differential copper pairs providing four data transmission channels at speeds up to 28Gbps per channel, and meets 100G Ethernet (4 x 25Gb/s) and InfiniBand EDR (Enhanced Data Rate) requirements. These 100G copper cable assembly features a unique construction with individually wrapped Twinax pairs, resulting in low insertion loss and low crosstalk.

Features                                                         :
100GBase-CR4
Length: 0.5~5 meters
8-pair differential twinax Cable
Passive
MCU
30/28/26AWG
Low power consumption
Excellent EMI performance
Temp. Range(℃): 0~70

Applications                                               :
Ethernet 100G, 40G
InfiniBand 4X SDR, DDR, QDR, EDR, FDR
Fiber Channel 10G, 40G, 100G
Rack-to-Rack, Shelf-to-Shelf Interconnect
TOR (Top of Rack)

Compliant                                              :
100G Ethernet (IEEE 802.3bj)
InfiniBand EDR
SFF-8665
RoHS compliant
