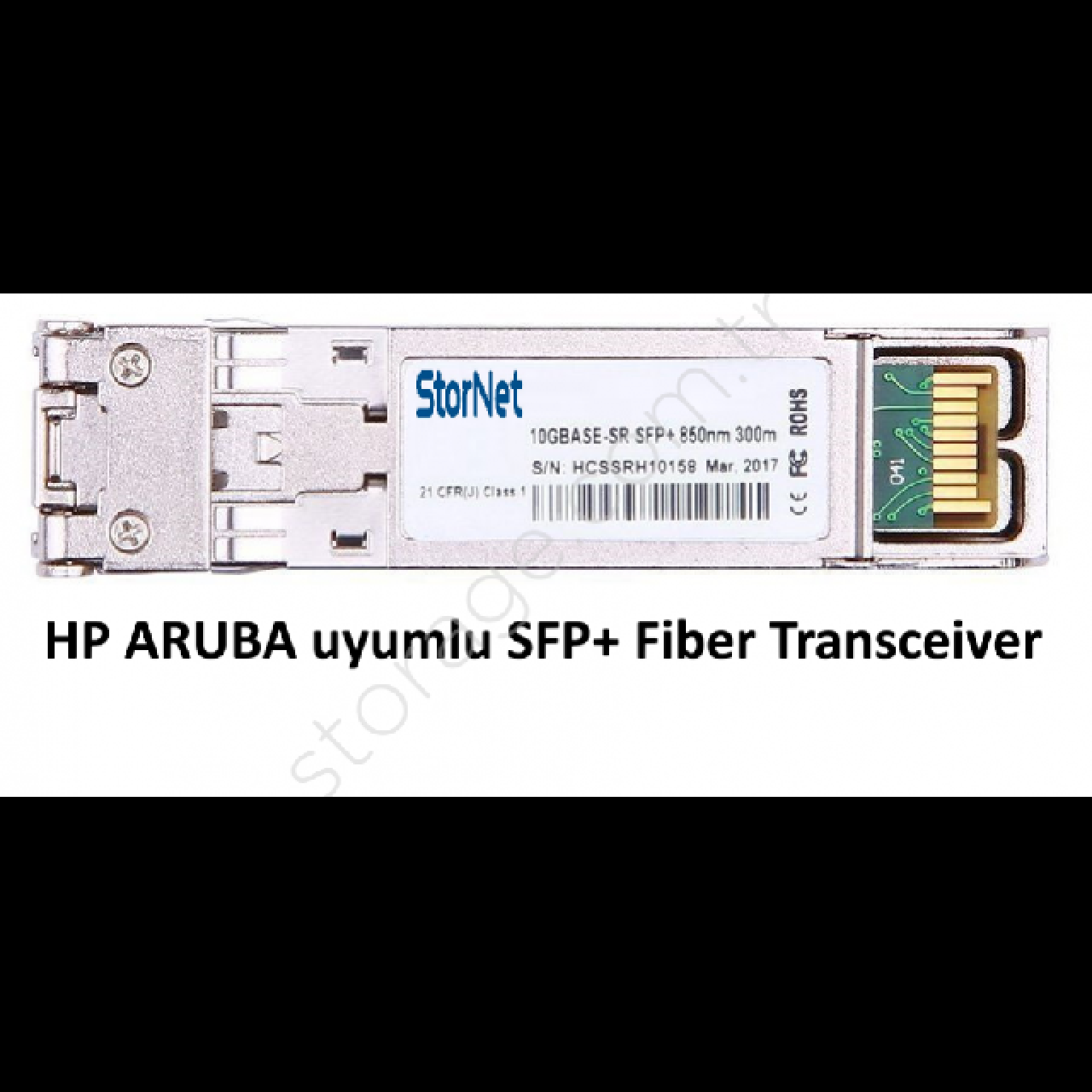

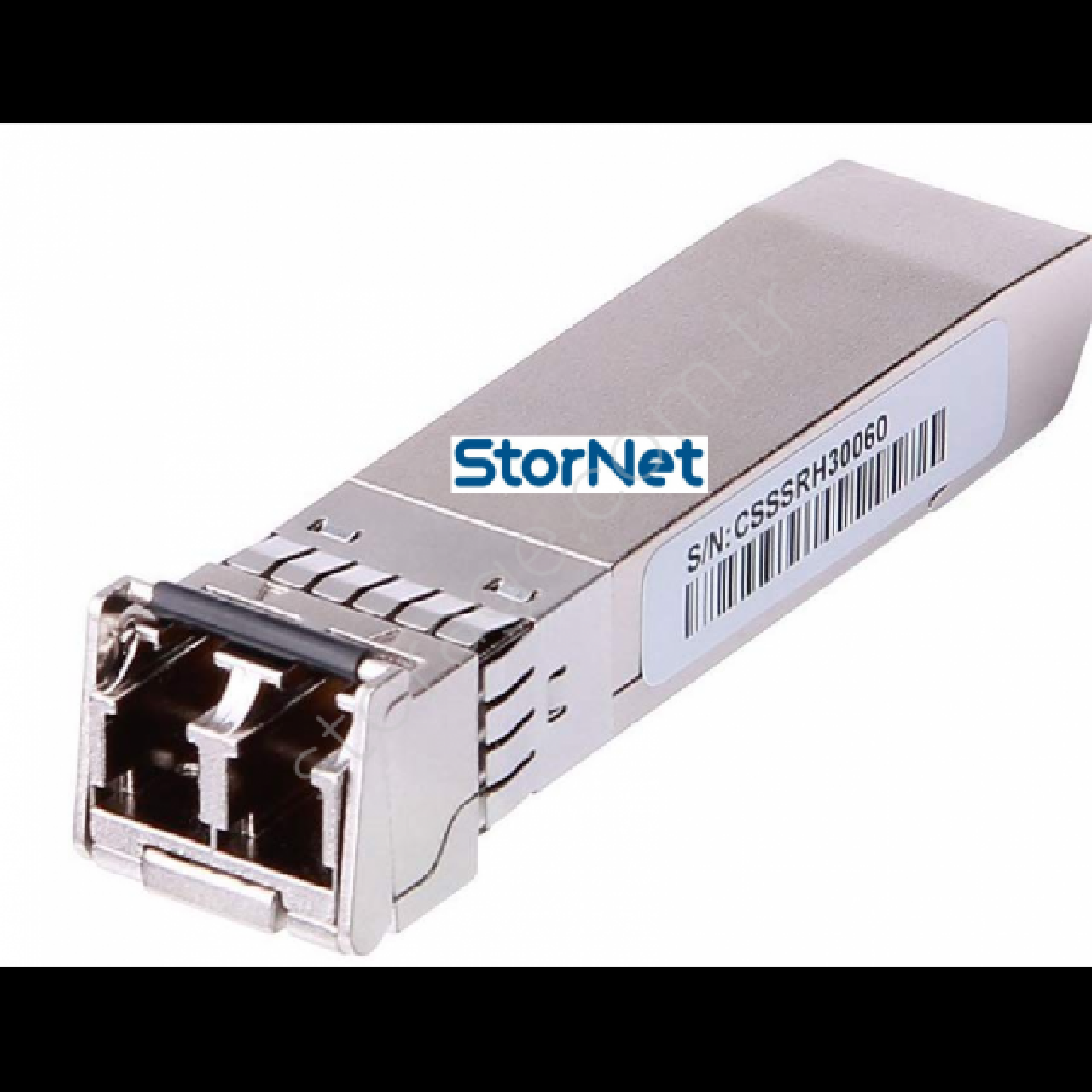

HP ProCurve ARUBA HPE J9150D uyumlu 10Gbase SR SFP+850 nm 300m Transceiver

HP ProCurve  ARUBA ile çalışmak için tasarlanmış SFP+ 10Gb/s Transceiver, 10GBase-SR, MMF, 850nm, 300M

HPE J1950D uyumludur

• SFP+ transceiver module
• 10GBase-SR
• Operating data rate up to 10.3Gbps
• up to 300m at 50/125 um MMF
• 850 nm VCSEL Transmitter
• Single 3.3V Power supply and TTL Logic Interface
• Duplex LC Connector Interface, Hot Pluggable
• Operating Case Temperature Standard: 0℃ ~ +70℃

Applications

• 10GBASE-SR at 10.31Gbps
• 10GBASE-SW at 9.95Gbps
• 1000 Base-SR Ethernet
• 8x FC at 8.5Gbps
• 4x FC at 4.25Gpbs
• 2x FC at 2.125Gpbs
• 1x FC at 1.0625Gbps
• Other optical links

HP ProCurve J9150A ile uyumlu  HP X132 10G SFP+ LC SR Transceiver

Compliance Information

• Compliant with MSA SFP+ Specification SFF-8431
• Compliant with 10G 1200-M5-SN-I and 1200-M6-SN-I FC standard
• Compliant with 8.5G 800-M5-SN-I and 800-M6-SN-I FC standard
• Compliant with 4.25G 400-M5-SN-I and 400-M6-SN-I FC standard
• Compliant with 2.125G 200-M5-SN-I and 200-M6-SN-I FC standard
• Compliant with 1.0625G 100-M5-SN-I and 100-M6-SN-I FC standard
• Compliant with IEEE 802.3ae 10GBASE-SR/SW
